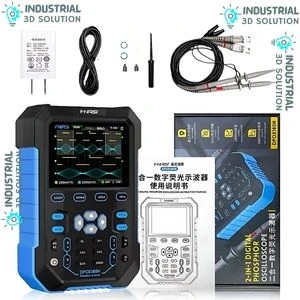

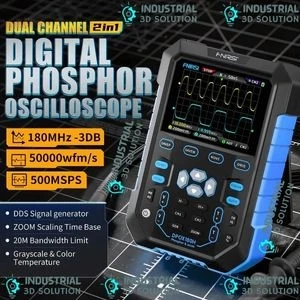

FNIRSI DPOX180H 2-in-1 Dual Channel Digital Phosphor Oscilloscope & Signal Generator

High-Precision 180MHz Bandwidth, 500MS/s Sampling Rate Portable Waveform Analyzer for Professional Electronics Testing

The FNIRSI DPOX180H is a versatile and powerful 2-in-1 handheld instrument that combines a dual channel digital phosphor oscilloscope with a built-in signal generator, tailored for precise electronics and circuit diagnostics. With an impressive 180MHz bandwidth and a fast 500MS/s sampling rate, it captures fast transient signals and complex waveforms with exceptional accuracy and clarity.

Key Features:

• Dual Channel Digital Phosphor Oscilloscope: Measure and analyze two independent signals simultaneously, ideal for troubleshooting complex circuits and comparing waveform behavior.

• High Bandwidth & Sampling Rate: 180MHz bandwidth coupled with 500MS/s sampling rate ensures accurate capture of high-frequency signals and fast signal transitions.

• Integrated Signal Generator: Generate sine, square, triangle, and pulse waveforms for testing, calibration, and circuit stimulation without the need for extra equipment.

• Digital Phosphor Display Technology: Enhances waveform intensity and detail, making glitches, noise, and signal anomalies clearly visible.

• Portable & Robust Design: Compact and lightweight, perfect for fieldwork and lab use. Durable casing protects against everyday wear and tear.

• Multiple Trigger Modes: Edge, pulse, video, and slope triggers for precise waveform capturing under diverse testing conditions.

• User-Friendly Interface: Intuitive controls and clear display facilitate quick setup and efficient operation.

• Data Storage & Connectivity: Save waveforms for post-analysis and transfer data via USB to PC for documentation or further processing.

Technical Specifications:

• Bandwidth: 180MHz

• Sampling Rate: 500MS/s real-time

• Channels: Dual independent inputs

• Waveform Output: Sine, square, triangle, pulse

• Display: High-resolution digital phosphor LCD

• Trigger Modes: Edge, pulse, video, slope

• Portability: Lightweight handheld design with durable enclosure

• Connectivity: USB interface for data transfer and firmware updates

Applications:

• Circuit design and debugging

• Embedded system testing

• Automotive electronics diagnostics

• Communication signal analysis

• Industrial equipment maintenance

• Educational labs and training
