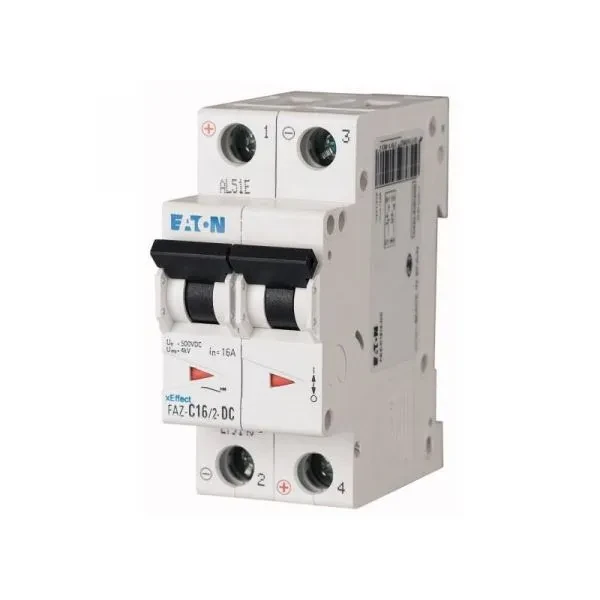

                Inhouse product
When it comes to protecting and switching, this range of high quality, reliable and safe products are a guarantee of protection for people, installations and systems worldwide. and approved for industrial and high end commercial applications, offering a wide variety of diverse protection characteristics. The FAZ-series includes auxiliaries, tripping modules, interlocks, busbars and accessories.
| Technical Spec | FAZ |
| Breaker Rating | 6-63A |
| Product Model | FAZ |
| Poles description | 2P |
| Breaking capacity | 15 KA |
| Network frequency | 50/60 Hz |
| Network type | AC/DC |
| [Ue] rated operational voltage | 230-400 V AC, 60 V DC |
| Characteristic | C- Curve |
| Control type | Toggle |
| Mounting support | 35 mm DIN rail |
| Trip unit technology | Thermal-magnetic |
| Mechanical durability | 10000 cycles |
| Height x Width x Depth | 80 mm x 35 mm x 72.6 mm |
| Product weight | |
| Standards | IEC/EN 60947-2 |
| Warranty period | 12 month |
