The 3DMakerPro Lynx Premium 3D Scanner is a large-area, high-precision 3D scanning solution engineered for fast, stable, and accurate digitization of small to large objects. Featuring a 400 × 250 mm single capture range, Lynx delivers significantly wider coverage per scan compared to conventional mid-format scanners, enabling efficient scanning of objects up to 5000 × 5000 × 5000 mm through multi-frame alignment.

Using Near-Infrared (NIR) structured light technology, the Lynx Premium ensures consistent scanning performance across different object colors and surface conditions. The NIR light source improves optical compatibility and tracking reliability while reducing sensitivity to ambient lighting, making it suitable for both indoor and outdoor scanning environments.

An integrated optical stabilizer and advanced visual tracking system enables smooth, marker-free scanning, minimizing misalignment and data loss during handheld operation. With a scanning speed of up to 10 FPS, the Lynx efficiently captures dense point cloud data while maintaining 0.1 mm accuracy and 0.3 mm resolution, producing highly faithful digital reproductions.

The scanner is fully compatible with JMStudio software, which includes intelligent one-click editing for automated alignment, noise reduction, and mesh optimization. Final models can be exported in OBJ, STL, PLY, and ASC formats for immediate use in 3D printing, reverse engineering, CAD workflows, and digital archiving.

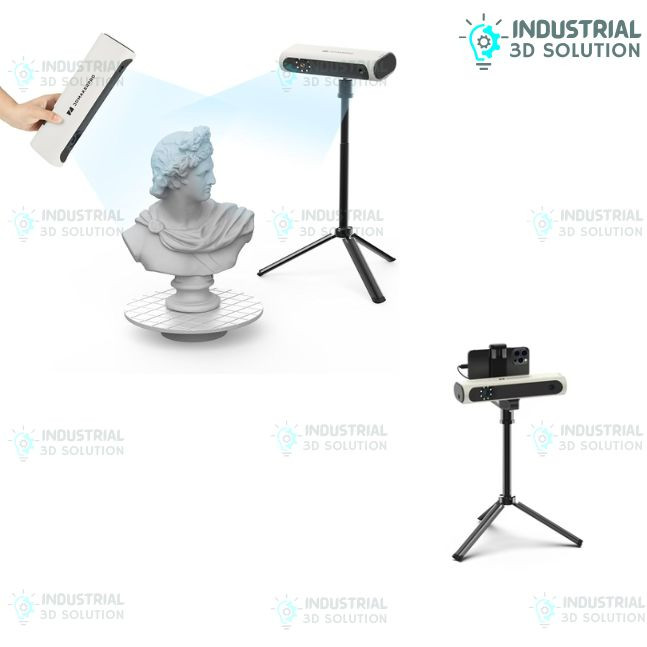

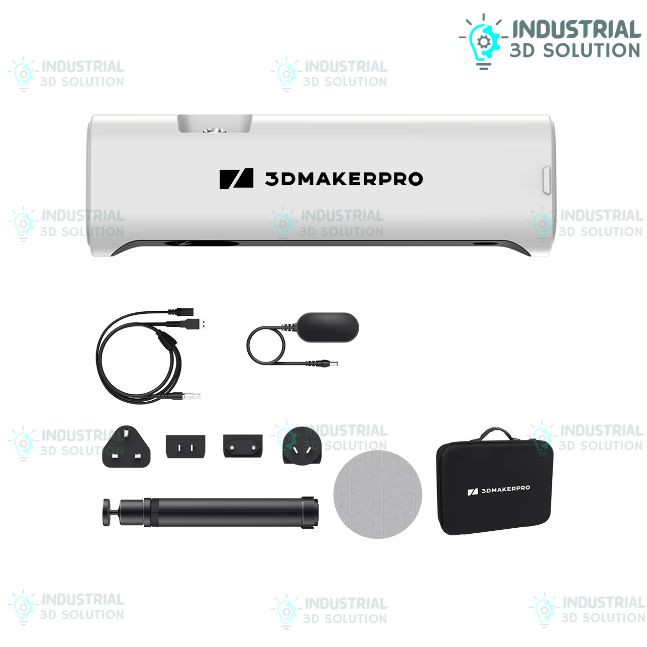

The Premium Package includes essential accessories such as a tripod and turntable, supporting both handheld scanning for flexibility and turntable mode for automatic, multi-pose scanning with precise alignment. Lightweight construction and ergonomic design ensure portability and comfort during extended scanning sessions.

Key Features

• Large single capture range of 400 × 250 mm

• Scans objects up to 5000 × 5000 × 5000 mm

• High accuracy up to 0.1 mm

• Resolution up to 0.3 mm

• Near-Infrared (NIR) structured light technology

• Optical stabilizer for smooth scanning

• Advanced visual tracking without markers

• Scanning speed up to 10 FPS

• Intelligent one-click editing via JMStudio

• Handheld and turntable scanning modes

• Marker-free scanning support

• Lightweight and portable design

• Industry-standard output formats

Technical Specifications

• Brand: 3DMakerPro

• Model: Lynx Premium

• Manufacturer: JIMUYIDA

• Part Number: lynx-p

• Scanning Technology: NIR structured light

• Accuracy: 0.10 mm

• Resolution: 0.30 mm

• Single Capture Range: 400 × 250 mm

• Typical Object Size: 100 – 2000 mm

• Maximum Scan Volume: 5000 × 5000 × 5000 mm

• Frame Rate: Up to 10 FPS

• Work Distance: 400 – 900 mm

• Tracking Mode: Visual tracking

• Color Texture: Mono textures

• Light Source: NIR

• Output Formats: OBJ / STL / PLY / ASC

• USB Interface: USB 2.0

• Dimensions: 244 × 75 × 48 mm

• Weight: 505 g

System Requirements

Minimum Requirements

• CPU: Intel Core i5 (8th Gen)

• RAM: 16 GB

• GPU: NVIDIA MX250 with 2 GB VRAM

• OS: Windows 10/11 64-bit, macOS 12/13 (M1/M2 supported)

Recommended Requirements

• CPU: Intel Core i7 (8th Gen or higher)

• RAM: 16 GB

• GPU: NVIDIA RTX 3060 with 4 GB VRAM

Applications

• 3D Printing

• Reverse Engineering

• Product Design

• Industrial Inspection

• Art and Sculpture Digitization

• Large Object Scanning

• Education and Research

• Rapid Prototyping

• CAD Modeling

• Digital Archiving

• Manufacturing Support

• Workshop and Lab Use
