                Inhouse product

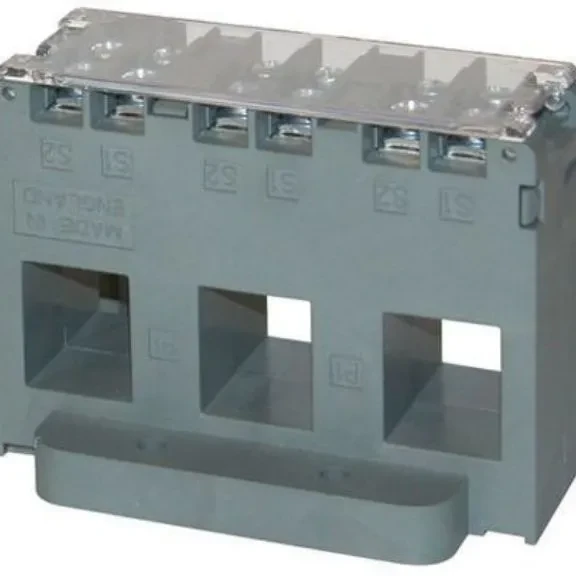

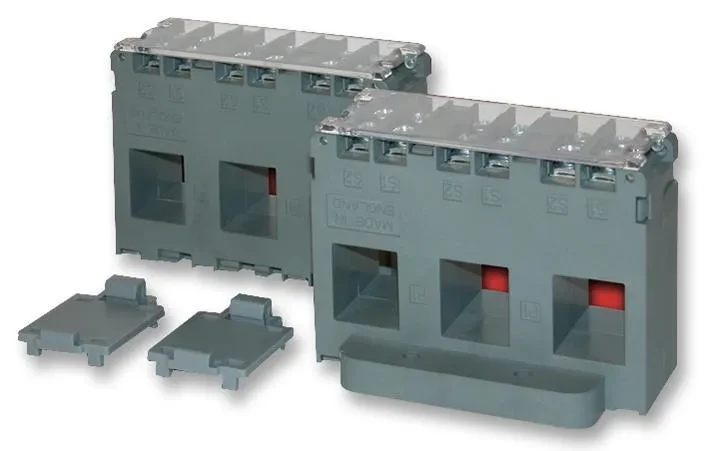

Miniature three phase current transformers suitable for primary ranges from 250A-630A with 5A secondary. Supplied with terminal cover and choice of fixings.
| Technical Spec | Current Transformer |
| Product Model | CT140F |
| Product type | 3 - Phase CT |
| Rated System Voltage | 0.72/3kV |
| Ambient temperature range | -30 ⁰C to 80 ⁰C |
| Continuous current | 1.2 x rated current |
| Terminal Covers | Sealable terminal covers |
| Standard | IEC60044-1, BS7626, |
| Accuracy Class | Class 1 |
| Overall dimension ( H x W x D ) | 90 mm x 140 mm x 38 mm |
| Clearance dimension for Busbar ( H x W ) | 36 mm x 31 mm |
| Country of origin | United Kingdom |
