                Inhouse product

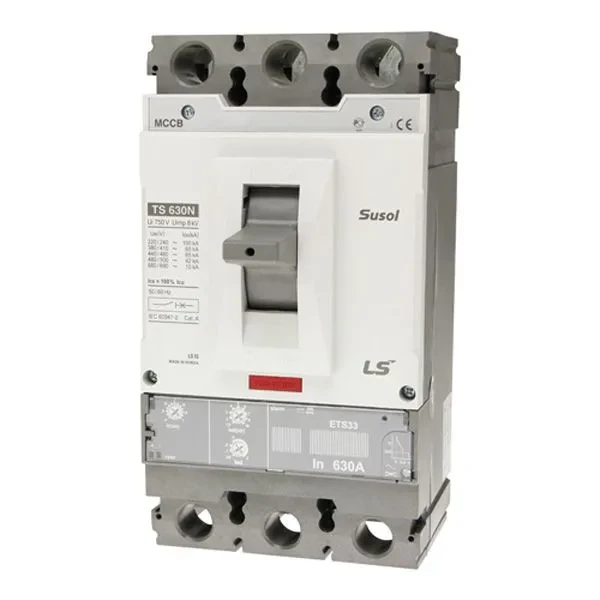

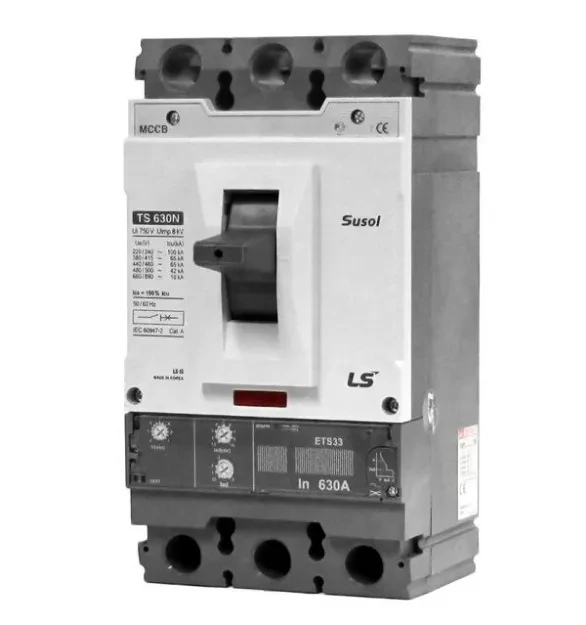

SUSOL Molded Case Circuit Breakers up to 1600 A
Susol circuit breakers provide superior performance in a compact package. They are used in cascade rated systems, allowing the use of lower interruption circuit breakers downstream, which lead to lower system cost.
| Technical Spec | SUSOL |
| Breaker Rating | 300-630A |
| Product Main model | Susol |
| Product Sub model | TS400H, TS630H |
| Poles description | 3P |
| Circuit breaker type | Adjustable |
| Breaking capacity | 85 KA |
| Network frequency | 50/60 Hz |
| Network type | AC & DC |
| [Ue] rated operational voltage | 690 V AC, 500 V DC |
| Device application | Distribution |
| Trip unit technology | Electronic |
| Protection type | Overload protection (thermal) |
| Short-circuit protection (magnetic) | |
| Trip unit protection functions | LSI |
| Auxiliary contact composition | Without |
| Mechanical durability | 20000 cycles |
| Connection pitch | |
| Height x Width x Depth | 260 mm x 140 mm x 110 mm |
| Product weight | 5.4 Kg |
| Standards | IEC60947-2 |
| Warranty period | 12 month |
