Bambu Lab PAHT-CF Carbon Fiber Filament 1.75mm – 500g | High-Temperature Engineering Nylon

Product Description

Bambu Lab PAHT-CF is an advanced engineering-grade 3D printing filament made from a high-performance composite of PA12 and carbon fiber. Designed for demanding industrial and professional applications, this filament delivers exceptional mechanical strength, superior Z-layer adhesion, low moisture absorption, and excellent thermal stability.

Unlike conventional PA-CF filaments, Bambu PAHT-CF maintains its mechanical properties even in humid or wet conditions. With up to 50% lower water absorption compared to normal PA-CF, it ensures consistent strength, dimensional accuracy, and durability—making it especially suitable for the humid climate of Bangladesh.

This filament is ideal for functional prototypes, machining fixtures, injection molds, jigs, tooling, and low-volume production parts where high tensile strength, impact resistance, and heat resistance are required.

Key Features

• PA12 + Carbon Fiber composite filament

• Low moisture absorption for humid environments

• Exceptional mechanical properties and durability

• Superior Z-layer adhesion and interlayer strength

• High tensile strength for load-bearing applications

• Maintains strength even when exposed to moisture

• Heat deflection temperature up to 194°C

• Comes with high-temperature reusable spool

• Consistent diameter: 1.75mm ±0.03mm

• Designed for professional and industrial 3D printing

Low Moisture Absorption Performance

Bambu PAHT-CF has a 50% lower saturated water absorption rate than standard PA-CF filaments, allowing printed parts to retain strength and dimensional stability even under high humidity.

Saturated Water Absorption (25°C, 55% RH)

• Normal PA-CF: 1.70%

• PAHT-CF: 0.88%

Mechanical Property Decline After Moisture Exposure

• Normal PA-CF: 40%–45%

• PAHT-CF: 12%–18%

Drying required: 80°C for 12 hours before printing

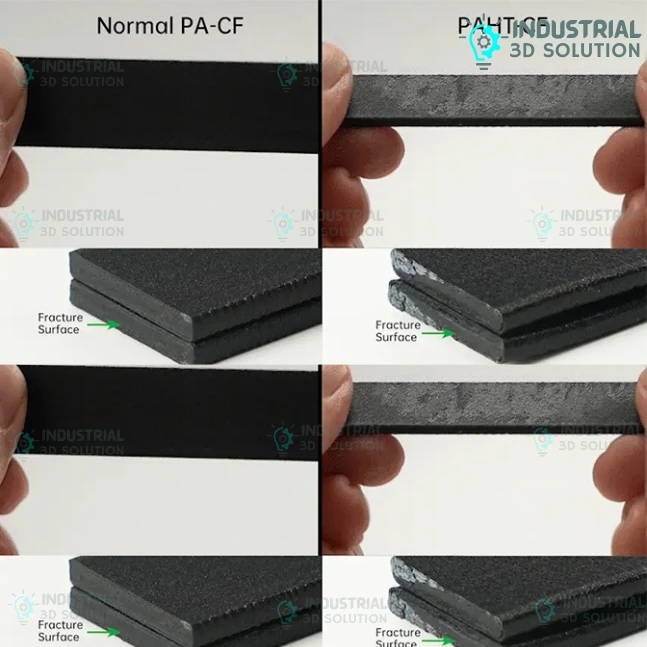

Exceptional Z-Layer Bonding

Bambu PAHT-CF offers significantly stronger interlayer bonding compared to normal PA-CF, improving impact resistance and reducing the risk of delamination.

Z-Layer Performance Improvement

• Bending Strength (Z): +27%

• Bending Modulus (Z): +24%

• Impact Strength (Z): +133%

This makes it ideal for mechanically stressed and load-bearing components.

High Tensile & Mechanical Strength

Designed for industrial use, Bambu PAHT-CF provides excellent strength, stiffness, and toughness for engineering applications.

Mechanical Properties

• Tensile Strength: 92 ± 7 MPa

• Bending Strength: 125 ± 7 MPa

• Bending Modulus: 4230 ± 210 MPa

• Impact Strength (XY): 57.5 ± 3.4 kJ/m²

• Breaking Elongation Rate: 8.4 ± 1.8%

High-Temperature Resistance

• Heat Deflection Temperature (0.45 MPa): 194°C

• Vicat Softening Temperature: 220°C

• Melting Temperature: 225°C

Suitable for parts exposed to elevated temperatures without deformation or strength loss.

Accessory Compatibility

Recommended

• Build Plates:
  Smooth PEI Plate, Textured PEI Plate, Cool Plate SuperTack

• Hotend:
  Hardened Steel Nozzle (0.6mm recommended, 0.4mm / 0.8mm supported)

• Adhesive:
  Glue Stick

Not Recommended

• Liquid Glue

Using a 0.6mm hardened steel nozzle offers the best balance between print quality and clog resistance.

Recommended Printing Settings

• Drying: 80°C for 8–12 hours

• Printing Environment Humidity: <20% RH (sealed container with desiccant)

• Nozzle Temperature: 260–290°C

• Bed Temperature (with glue): 80–100°C

• Printing Speed: <100 mm/s

Physical Properties

• Density: 1.06 g/cm³

• Melt Index: 14.4 ± 2.0 g/10 min

• Heat Deflection Temperature: 194°C

• Vicat Softening Temperature: 220°C

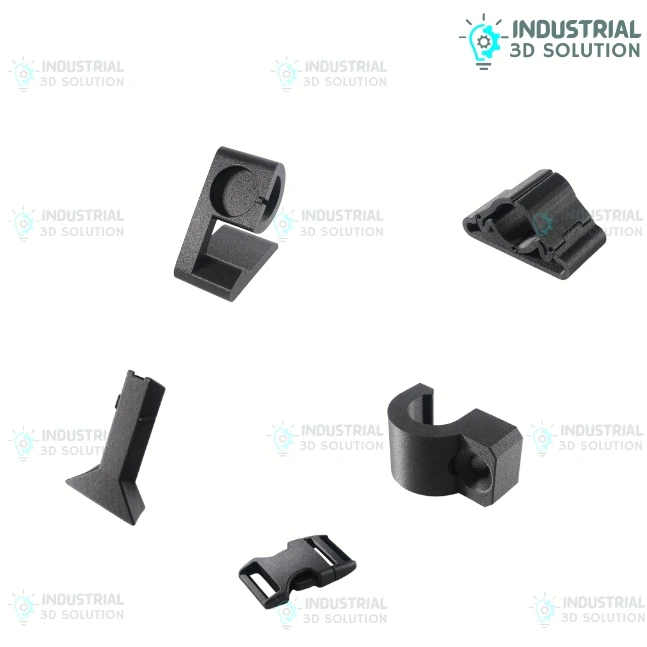

Applications

• Functional engineering prototypes

• Machining fixtures and jigs

• Injection mold tooling

• Industrial housings and brackets

• Load-bearing mechanical parts

• High-temperature components

• Low-volume industrial production

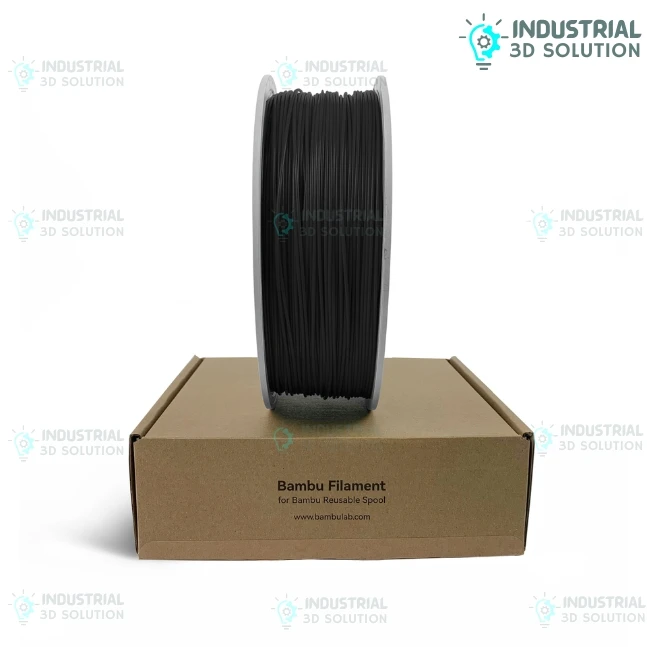

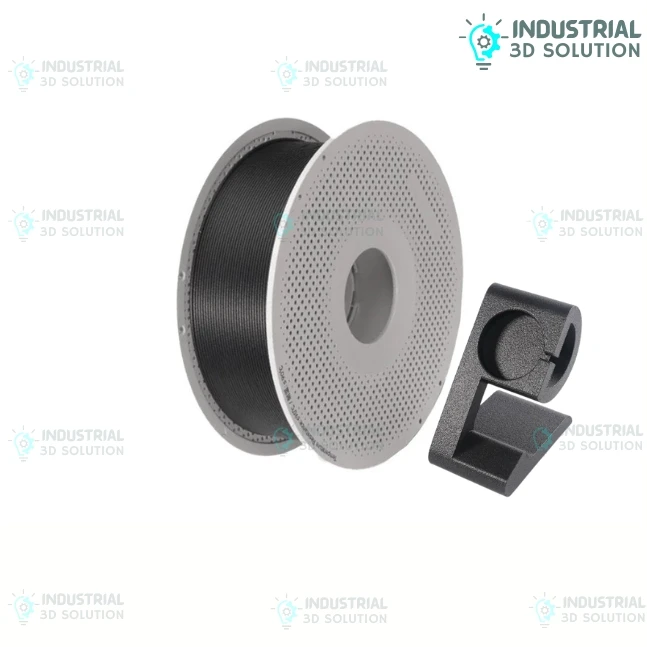

Packaging Information

• Filament Diameter: 1.75mm

• Net Filament Weight: 500g

• Spool Type: High-temperature reusable spool

• Package Weight: Approx. 0.75 – 0.85 KG

• Package Dimensions (L × W × H): Approx. 21 × 21 × 7.5 cm

Package Contents

• 1 × Bambu Lab PAHT-CF Carbon Fiber Filament (1.75mm, 500g)

Why Choose Bambu Lab PAHT-CF

Bambu Lab PAHT-CF is the ideal choice for engineers and professionals in Bangladesh who require high mechanical strength, moisture resistance, superior layer adhesion, and thermal stability. Its advanced PA12 carbon fiber composition ensures consistent performance even in humid environments, making it a reliable solution for serious industrial and engineering 3D printing applications.
