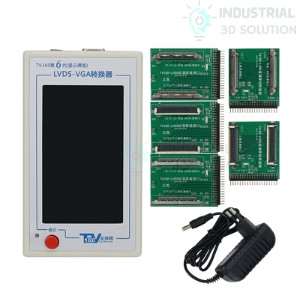

The TV160-6 TV Motherboard Converter Tester Tool is a specialized diagnostic and signal conversion device designed for efficient testing of modern TV mainboards. It converts Vbyone signal outputs to standard LVDS format, allowing technicians to interface TV motherboards with a variety of LCD screens for accurate fault isolation and repair.

Engineered for use in TV repair centers, electronics R&D labs, and production lines, this tool simplifies signal testing by eliminating the need for dedicated panels. With support for high-resolution display signals, intuitive controls, and a stable output interface, the TV160-6 enhances testing accuracy and speeds up troubleshooting tasks.

Whether you're testing UHD, FHD, or HD screen outputs, this converter ensures compatibility and reliability across a wide range of TV motherboard models.

Key Features:

• Converts Vbyone signals to LVDS format

• Supports 2K, 4K UHD, and FHD signal output

• Quick-connect interface for efficient diagnostics

• Eliminates need for native display panels during testing

• Plug-and-play operation with minimal setup

• Compatible with a wide range of motherboard brands and models

Technical Specifications:

• Model: TV160-6

• Input Signal: Vbyone (up to 8 lanes)

• Output Signal: LVDS (dual-channel supported)

• Resolution Support: 720p / 1080p / 4K (3840x2160)

• Power Input: DC 12V

• Interface Ports: Standard LVDS & Vbyone connectors

• Compatibility: Universal for most TV motherboard signal types

• Control Mode: Onboard buttons or remote (if supported)

Applications:

• TV motherboard signal conversion

• LCD panel testing and compatibility verification

• Screen-less testing in TV repair

• Signal validation for manufacturing and R&D

• Educational use for electronics diagnostics training
