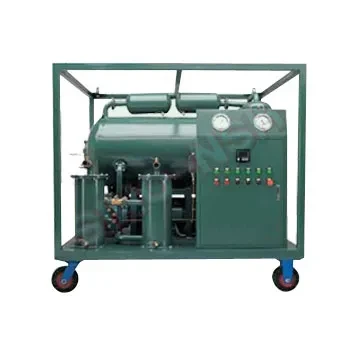

Vacuum Oil Purifier
(0
reviews)
Estimate Shipping Time:
112 Days
Inhouse product
Request for Quote
Share
Top Selling Products
-
৳12,300.00৳13,500.00 -
৳688,500.00
৳1,100,000.00 -
৳259,500.00
৳400,000.00
Reviews & Ratings
0.00
out of 5.0
(0
reviews)
There have been no reviews for this product yet.
Specifications
To be used for treatment to new oil, imported oil and super HV transformer oil, particularly applicable to 110KV transformer
Technical Features:
1.Based on the high efficient vacuum oil purifier, Roots vacuum booster system and secondary high vacuum separation system are added, which enable the vacuum limit reaching ≤5Pa.
2. Being able to remove water and gas fast and effectively under high vacuum and high speed operation status, which achieves satisfactory dryness and could bring the breakdown voltage up to 70KW, resulting in an enhanced one-time filtration effect which reduces the oil aging problem existing with ordinary purifiers as caused by repeated heating.
3. Being able to remove the minimal amount of water and various gases in oil, thus ensuring zero acetylene existence. The purifier can also serve as vacuum oil filler and dryer for transformer.
4. The advanced infrared level automatic control system, interlocking control for pressure protection and power heating system ensures long-term safe and reliable operation.
Technical Parameters
Items | Unit | ZYD-30 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 | ||
Flow | L/min | 30 | 50 | 100 | 150 | 200 | 200 | 300 | ||
Vacuum Range | Mpa | -0.08-0.099 | ||||||||
Working Pressure | Mpa | ≤0.4 | ||||||||
Temperature Range | 20 80 | |||||||||
Power Supply | 380V 50HZ ( or at user's option ) | |||||||||
Noise | dB(A) | ≤6585 | ||||||||
Fault-Free Working Hours | h | ≥4000 | ||||||||
Continuous Running Hours | h | ≥150 | ||||||||
Heating Power | Kw | 30 | 30 | 120 | 150 | 180 | 240 | 160 | ||
Total Power | Kw | 35.5 | 37.5 | 130 | 161 | 193 | 256 | 278 | ||
Inlet(Outlet) Diameter | mm | Φ25 | Φ25 | Φ42 | Φ50 | Φ50 | Φ60 | Φ60 | ||
Total weight of equipment | kg | 450 | 550 | 870 | 950 | 1250 | 1850 | 2100 | ||
Outer size | L | mm | 1500 | 1500 | 1950 | 2100 | 2200 | 2250 | 2400 | |
W | mm | 1250 | 1250 | 1300 | 1350 | 1350 | 1400 | 1450 | ||
H | mm | 1700 | 1750 | 2100 | 2200 | 2200 | 2200 | 2200 | ||
After filtration | Breakdown voltage | KV | ≥70 | |||||||
Water content | ppm | ≤5 | ||||||||
Gas content | % | ≤0.1 | ||||||||
Impurities | μ | ≤3 | ||||||||
