Product Description:

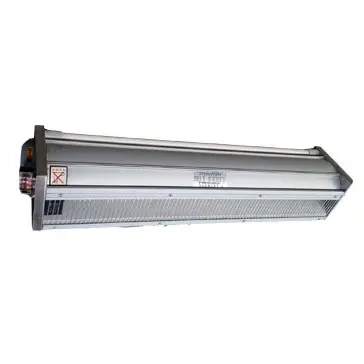

This air blower is engineered specifically for dry-type transformers to provide effective forced air cooling. It enhances transformer reliability, improves thermal performance, and helps extend equipment life by reducing the risk of overheating during peak or continuous operation.

Manufactured with high-efficiency motors and dynamically balanced impellers, the blower delivers consistent airflow with low vibration and minimal noise. It supports both manual and automated operation using thermal sensors or relay systems and is suitable for cast resin and open ventilated transformer designs.

This air blower is ideal for power distribution systems, substations, transformer rooms, and retrofit applications in industrial environments.

 Features:

• Designed for dry-type transformer cooling

• Airflow capacity adaptable to transformer load

• Quiet, low-vibration operation

• Compatible with automated thermal controls

• Easy to install and maintain

• Built for continuous or intermittent duty

• Custom configurations available on request

Technical Specifications:

Blower Type: Centrifugal or axial (based on model)
Air Flow Capacity: 200 to 1500 CFM
Motor Power: 0.18 kW to 2.2 kW
Operating Voltage: 230V / 400V / 415V AC, 50Hz or 60Hz
Motor Type: TEFC (Totally Enclosed Fan Cooled), IP55 or IP65
Current Rating: 0.8A to 6.0A
Static Pressure: 10 to 60 mm H₂O
Noise Level: ≤ 70 dB(A) at 1 meter
Mounting Type: Base, flange, or side-mounted
Housing Material: Galvanized steel, aluminum, or powder-coated steel
Temperature Range: -20°C to +60°C
Control Compatibility: Thermostat, relay, or manual switch
Standards: IEC 60034, IS 325, CE compliant

Applications:

• Cast resin and dry-type transformers

• Distribution transformers

• Transformer enclosures and substations

• Industrial electrical rooms

• Panel cooling systems

• Cooling system retrofits for transformers
