XM-12020 Extra Large Format Fiber Laser Cutting Machine Industrial CNC Metal Sheet Cutter 12000×2000mm 3KW–20KW High Power System

Product Description

The XM-12020 fiber laser cutting machine is an extra-large format CNC solution designed for heavy-duty industrial metal sheet processing. With an extended working area of 12000×2000mm, this high-power fiber laser cutter is ideal for large-scale manufacturing, steel fabrication, and infrastructure projects in Bangladesh.

Engineered for precision and productivity, the machine supports laser power from 3kW to 20kW, enabling efficient cutting of thick metal sheets with high speed and accuracy. Its robust structure, advanced CNC control system, and compatibility with leading design software ensure reliable performance in demanding industrial environments. Combined with professional technical support and operator training, the XM-12020 is a practical investment for businesses seeking large-format, high-efficiency metal cutting solutions.

Key Features

• Extra large format fiber laser cutting machine with 12000×2000mm working area for oversized metal sheets
• High power CNC laser cutter (3000W–20000W) suitable for thick metal cutting applications
• Industrial-grade metal sheet laser cutting machine with stable 1G acceleration performance

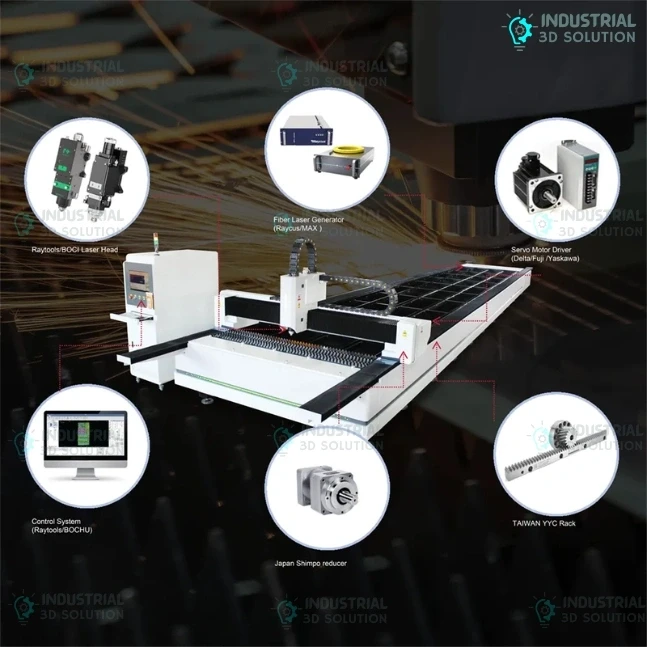

• Advanced BOCHU control system ensures precise and efficient CNC operation
• Compatible with AutoCAD and CorelDraw for flexible design and workflow integration
• High-quality fiber laser source (Raycus, MAX, BWT, RECI) for consistent cutting performance
• Water cooling system maintains optimal operating temperature for continuous production
• Long laser source lifespan exceeding 100,000 hours for reduced maintenance cost
• Supports multiple file formats including DXF, PLT, AI, NC code for industrial compatibility
• Backed by 24-hour technical support and complete operation training package

Technical Specifications

Model
XM-12020

Machine Type
Extra Large Format Fiber Laser Cutting Machine

Working Area
12000 × 2000 mm

Laser Power Options
3000W / 6000W / 8000W / 12000W / 20000W

Maximum Acceleration
1G

Laser Wavelength
1080 nm

Control System
BOCHU / Raytools

Laser Source Options
Raycus / MAX / RECI / BWT

Compatible Software
AutoCAD, CorelDraw

Supported File Formats
DXF, PLT, AI, LXD, GBX, NC Code

Voltage Requirement
380V, 3 Phase, 50/60Hz

Cooling Method
Industrial Water Cooling System

Laser Source Lifetime

100,000 Hours

Machine Weight (Net Weight)
Approx. 6000 kg

Package Weight
Approx. 7000 – 8000 kg

Machine Dimensions (L × W × H)
1550 × 282 × 207 cm

Package Dimensions (L × W × H)
Approx. 1600 × 300 × 230 cm

Color / Finish
Industrial White with Protective Coating

Country of Origin
China

Applications / Use Cases

• Large-scale steel fabrication and heavy industry
• Shipbuilding and infrastructure projects in Bangladesh
• Construction and bridge component manufacturing
• Industrial sheet metal processing plants
• Railway and transport equipment fabrication
• Power plant and heavy engineering workshops
• Large signage and billboard frame cutting
• Agricultural and industrial machinery manufacturing
• CNC job work for oversized metal sheets
