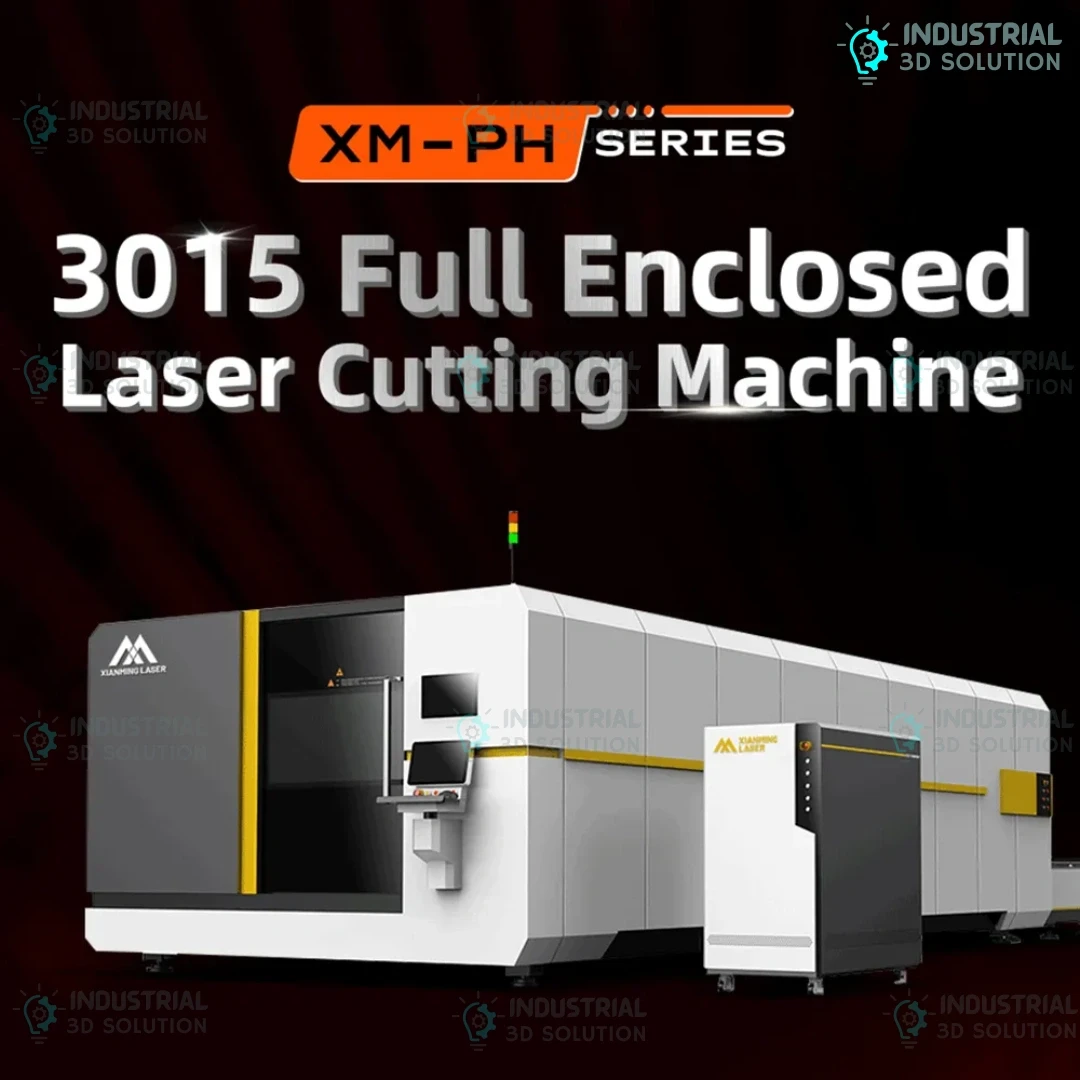

3015 Full Enclosed Fiber Laser Cutting Machine with Exchange Table XM-3015PH Industrial CNC Metal Cutter 1500W–30KW Power Range 3000×1500mm Working Area

Product Description

The XM-3015PH full enclosed fiber laser cutting machine with exchange table is a high-performance CNC solution designed for precision metal sheet cutting in industrial environments. Built for manufacturers, fabrication workshops, and engineering facilities in Bangladesh, this machine combines advanced fiber laser technology with a fully enclosed safety structure and dual exchange platform for continuous operation.

Supporting a wide power range from 1.5kW to 30kW, it delivers fast cutting speeds, excellent edge quality, and stable long-term performance across various metals including stainless steel, carbon steel, aluminum, and brass. The enclosed design enhances operator safety while reducing environmental impact. Ideal for high-volume production, this machine significantly improves efficiency, reduces downtime, and ensures consistent cutting accuracy for modern fabrication needs.

Key Features

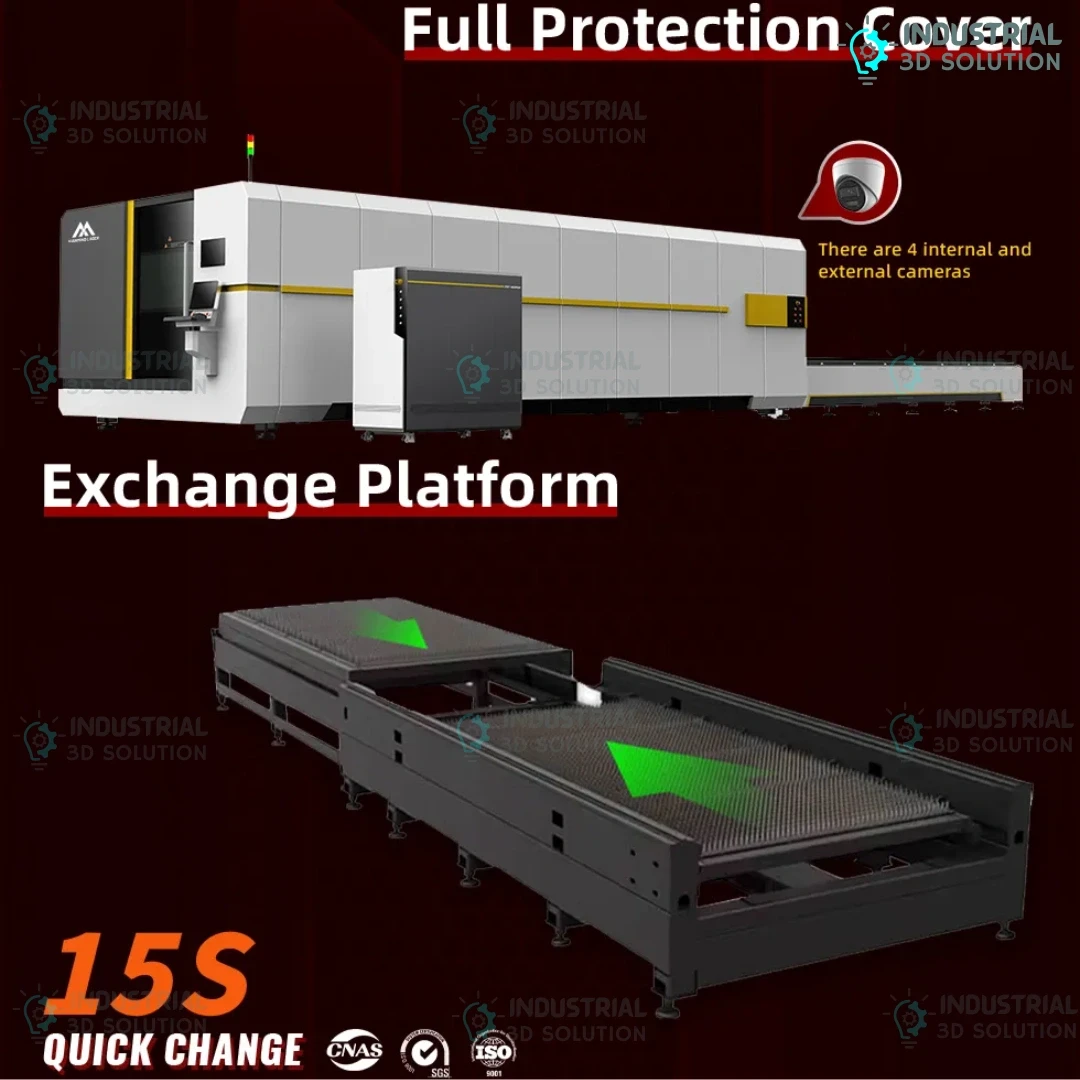

• Fully enclosed fiber laser cutting machine with protective viewing window for safe industrial operation
• Dual exchange table system improves productivity by enabling simultaneous loading and cutting
• High precision CNC laser cutter with ±0.01mm positioning accuracy for detailed metal work
• Wide laser power range (1500W–30KW) supports thick sheet metal cutting up to 25mm
• Advanced servo-driven gantry system ensures stable high-speed cutting performance
• Aluminum crossbeam structure provides lightweight durability and thermal resistance
• Automatic focusing laser head enhances cutting efficiency and reduces manual adjustment
• Integrated air circuit and optimized control system for smooth and reliable operation
• Compatible with CorelDraw, AutoCAD, Photoshop, and AI for flexible design workflow
• Industrial-grade transmission system with dual rack and pinion for long-term durability

Technical Specifications

Model
XM-3015PH (3015 / 4015 / 6015 / 4020 / 6020 / 6025 variants available)

Machine Type
Full Enclosed Fiber Laser Cutting Machine with Exchange Table

Working Area
3000 × 1500 mm (other sizes available up to 6000 × 2500 mm)

Laser Power Options
1500W / 3000W / 6000W / 12000W / 30000W

Positioning Accuracy
±0.01 mm

Maximum Acceleration
1G – 2G

Cooling Method
Industrial Water Cooling System

Transmission System
Dual Rack & Pinion Drive with Servo Motor

Compatible Software
CorelDraw, AutoCAD, Photoshop, AI

Laser Source Options
Raycus / MAX / IPG / RECI

Cutting System

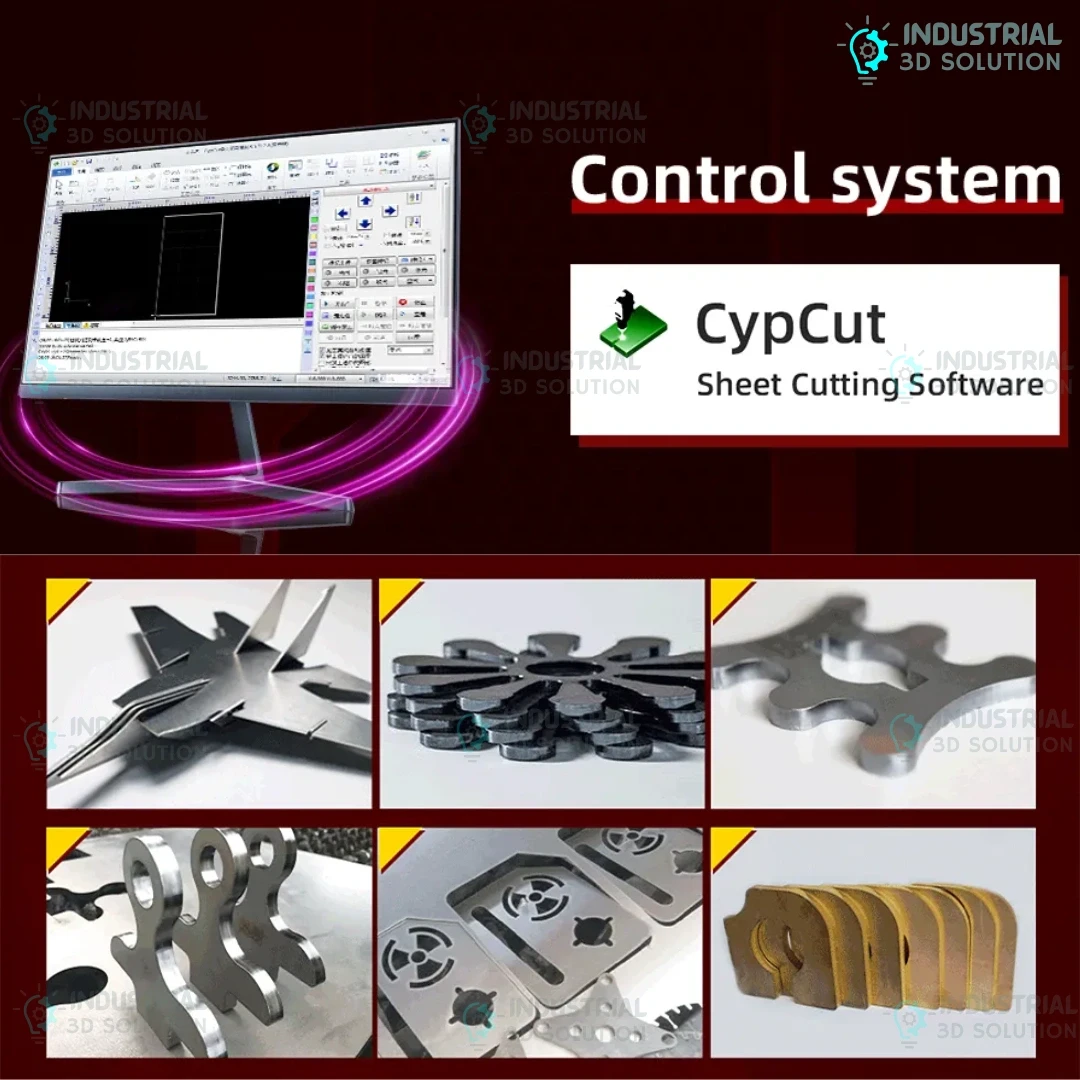

Cypcut / Raytools

Voltage Requirement
220V / 380V

Material Compatibility
Stainless Steel, Carbon Steel, Mild Steel, Aluminum, Brass, Copper, Titanium, Alloy Steel

Net Weight
Approx. 8000 – 12000 kg (depending on configuration)

Package Weight
Approx. 9000 – 13000 kg

Package Dimensions (L × W × H)
Approx. 450 × 230 × 210 cm (varies by model size)

Color / Finish
Industrial White with Protective Coating

Country of Origin
China

Applications / Use Cases

• Industrial metal fabrication and sheet cutting
• CNC manufacturing workshops and production lines
• Steel structure and engineering fabrication
• Signage and advertising metal cutting
• Automotive parts manufacturing
• Electrical panel and enclosure production
• Agricultural machinery fabrication in Bangladesh
• Metal craft and custom design workshops
• Shipbuilding and heavy industry applications

Packaging Information

• Full machine wrapped with protective film
• Anti-collision edge protection for safe transit
• Fumigation-free plywood wooden box with reinforced pallet base
• Secured with industrial iron binding straps
• All components packed for long-distance export safety

Why Choose This Product

• High precision fiber laser cutter suitable for industrial-grade applications
• Exchange table system ensures continuous production and time efficiency
• Wide power range supports both thin and thick metal cutting
• Durable structure with stable performance for long-term use
• Compatible with globally recognized software and laser sources
• Reliable availability and support for Bangladesh market
