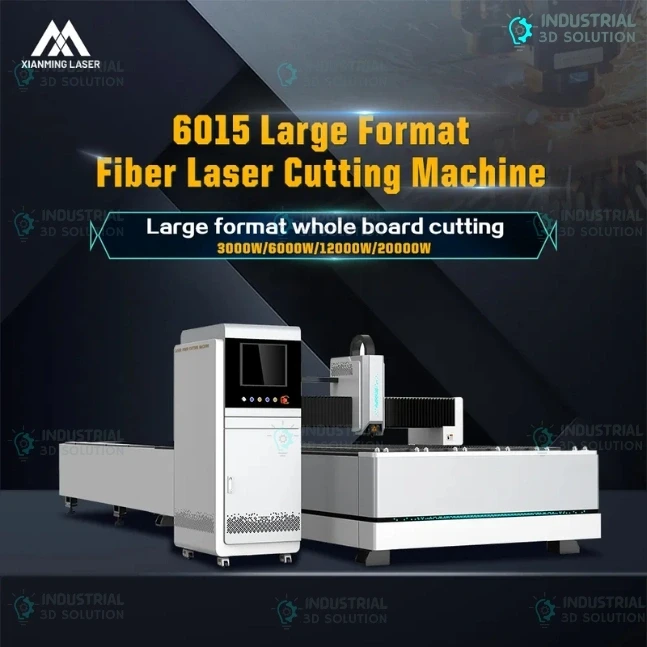

XM-6015 Fiber Laser Cutting Machine Large Format CNC Metal Sheet Cutter 6000×1500mm 3KW–20KW Industrial High Precision System

Product Description

The XM-6015 fiber laser cutting machine is a large-format CNC solution engineered for high-speed, high-precision cutting of metal sheets in industrial environments. Designed for fabrication workshops, manufacturing plants, and engineering industries in Bangladesh, this machine delivers efficient processing of stainless steel, carbon steel, aluminum, and other alloys.

With a working area of 6000×1500mm and laser power options up to 20kW, it supports both medium and heavy-duty cutting requirements. The machine integrates advanced CypCut control software, high-performance laser heads, and a robust welded bed structure for stable, long-term operation. Its optimized design ensures minimal deformation, smooth cutting edges, and improved productivity, making it a reliable choice for businesses seeking scalable and cost-effective metal cutting solutions.

Key Features

• Large format fiber laser cutting machine with 6000×1500mm working area for industrial metal sheet processing
• High power CNC laser cutter (3000W–20000W) suitable for thick and thin metal cutting

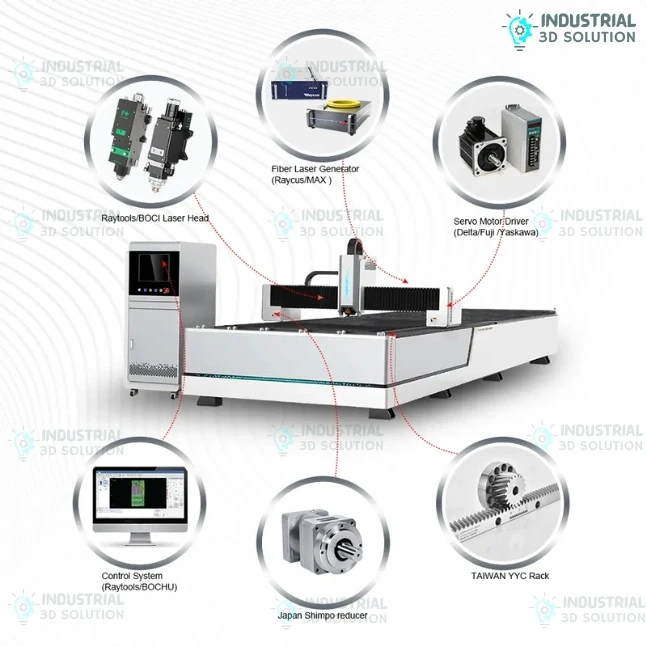

• Advanced CypCut control system with integrated CAD, CAM, and nesting functions
• High precision laser cutting machine with closed-loop servo motor system for accurate motion control
• Durable welded machine bed with heat treatment for long-term structural stability
• Monolithic aluminum beam ensures lightweight strength and high-speed performance
• Multiple laser head options (Raytools, BOCI) for flexible industrial configurations
• Water cooling system maintains consistent performance during continuous operation
• Supports multiple file formats including DXF, AI, PLT for flexible workflow
• Optimized production modes and real-time monitoring for improved efficiency

Technical Specifications

Model
XM-6015

Machine Type
Fiber Laser Cutting Machine (Sheet Metal)

Working Area
6000 × 1500 mm

Laser Power Options
3000W / 6000W / 12000W / 20000W

Maximum Acceleration
1G

Laser Wavelength
1080 nm

Control System
BOCHU / Raytools (CypCut Software)

Laser Source Options
Raycus / MAX / RECI / BWT

Compatible Software
AutoCAD, CorelDraw

Supported File Formats
DXF, PLT, AI, LXD, GBX, NC Code

Voltage Requirement
380V, 3 Phase, 50/60Hz

Cooling Method
Industrial Water Cooling System

Laser Source Lifetime

100,000 Hours

Net Weight
Approx. 3000 kg

Package Weight
Approx. 3500 – 4000 kg

Machine Dimensions (L × W × H)
750 × 191 × 217 cm

Package Dimensions (L × W × H)
Approx. 800 × 220 × 240 cm

Color / Finish
Industrial White with Protective Coating

Country of Origin
China

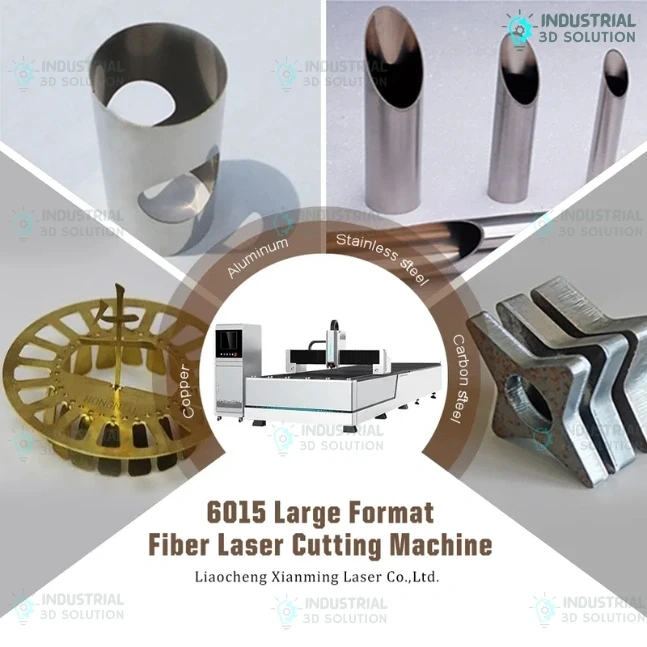

Applications / Use Cases

• Sheet metal fabrication workshops in Bangladesh
• Industrial manufacturing and production lines
• Steel structure and construction industries
• Electrical panel and enclosure manufacturing
• Advertising and signage metal cutting
• Automotive parts and machinery production
• Kitchen equipment and appliance manufacturing
• Solar and energy sector metal processing
• CNC job work and custom metal fabrication

Packaging Information

• Machine fully wrapped with protective film
• Anti-collision edge protection for safe transport
• Fumigation-free plywood wooden crate with pallet
• Reinforced with iron binding straps for export safety
• Secure packaging suitable for long-distance delivery

Why Choose This Product

• Large working area suitable for industrial-scale sheet cutting
• High power options enable versatile metal processing
• Stable and durable machine structure ensures long service life
• Advanced CNC system simplifies operation and increases productivity
• Compatible with global laser brands and industry software
• Reliable support and availability in Bangladesh market
